Kahaya Lombok · Render Intelligence Pilot

01The brief

What the developer sent

Kahaya Lombok is an exclusive villa community in Kuta, Lombok: townhouse villas, one-bedroom row units, private 3 and 4 bedroom villas, and a solar-roofed clubhouse around a lagoon pool, 400 metres from the beach. The brief: prove their existing renders can become presentation, sales and film material without touching the 3D scene again. The ground truth for every test below is the master plan and six original renders.

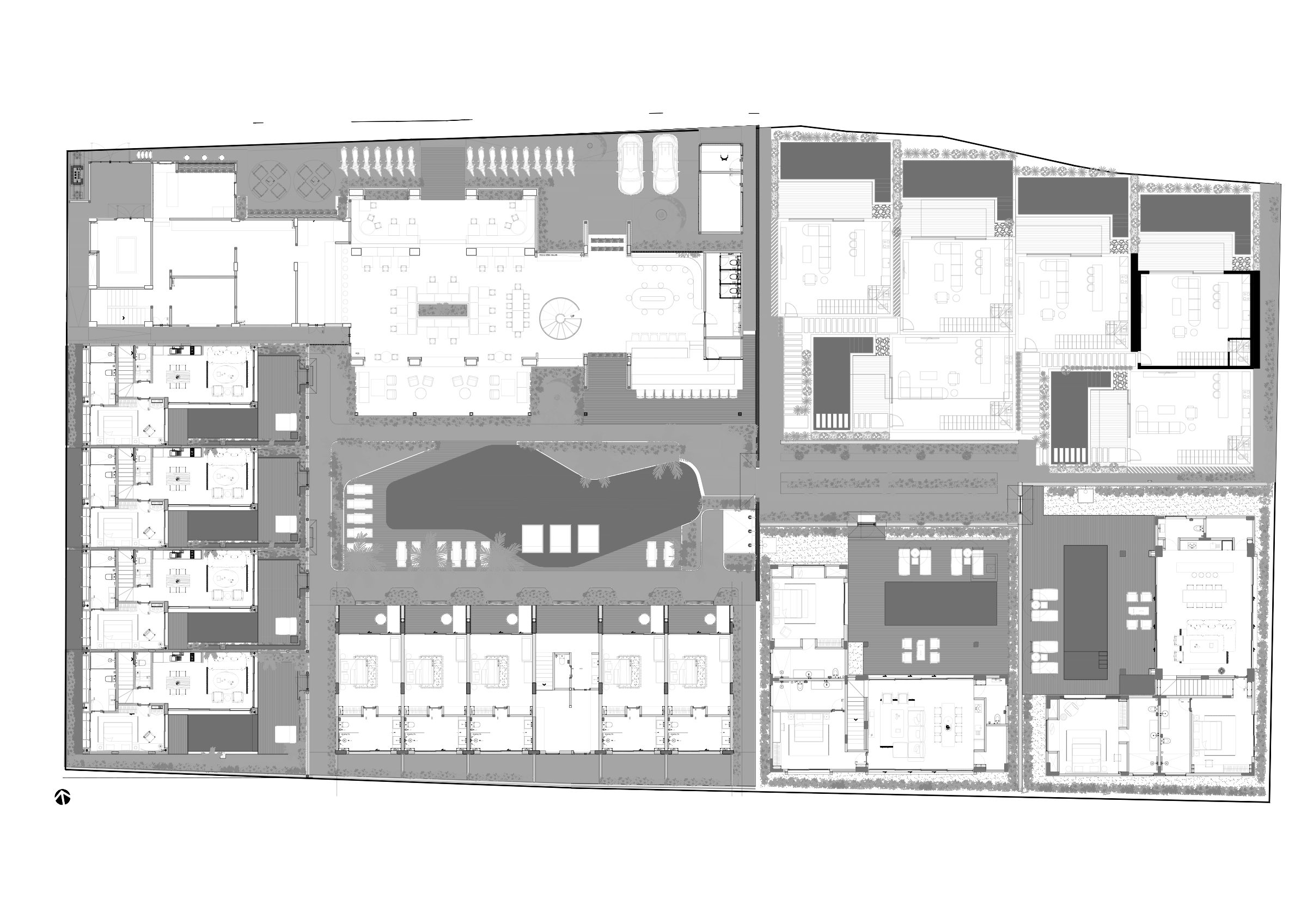

**Master plan.** The architectural ground truth every generation is checked against.

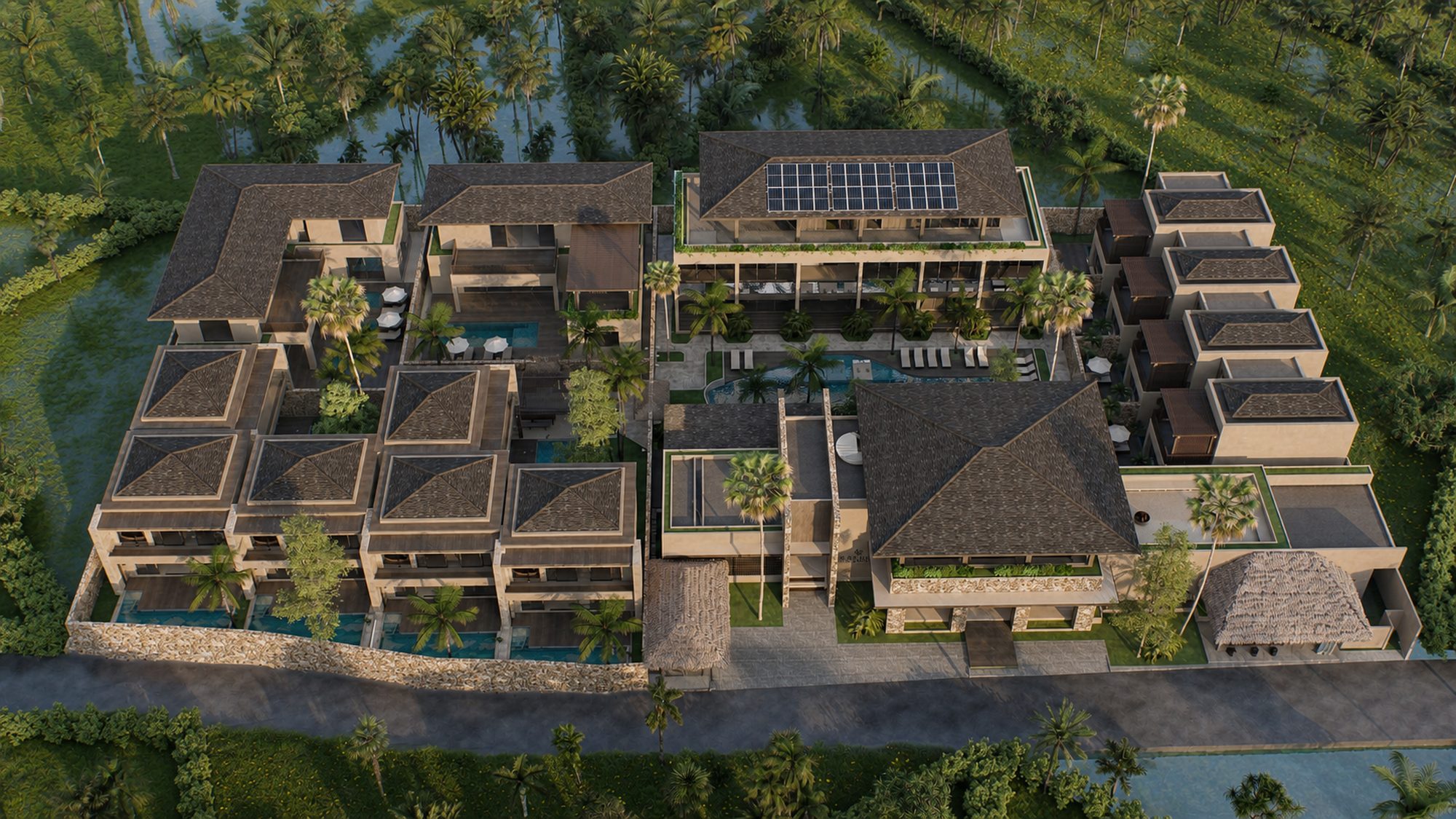

Original golden hour render — **Original render.** Accurate architecture, but plantation rows and CGI light give it away.

02The shootout

Seven models, one identical instruction

Every current edit-capable image model on Higgsfield received the same source frame and the same order: keep every building exact, make it read as a real drone photograph. Two rounds of quantified checks (pixel drift in building zones, then crop-level geometry inspection) picked the winners.

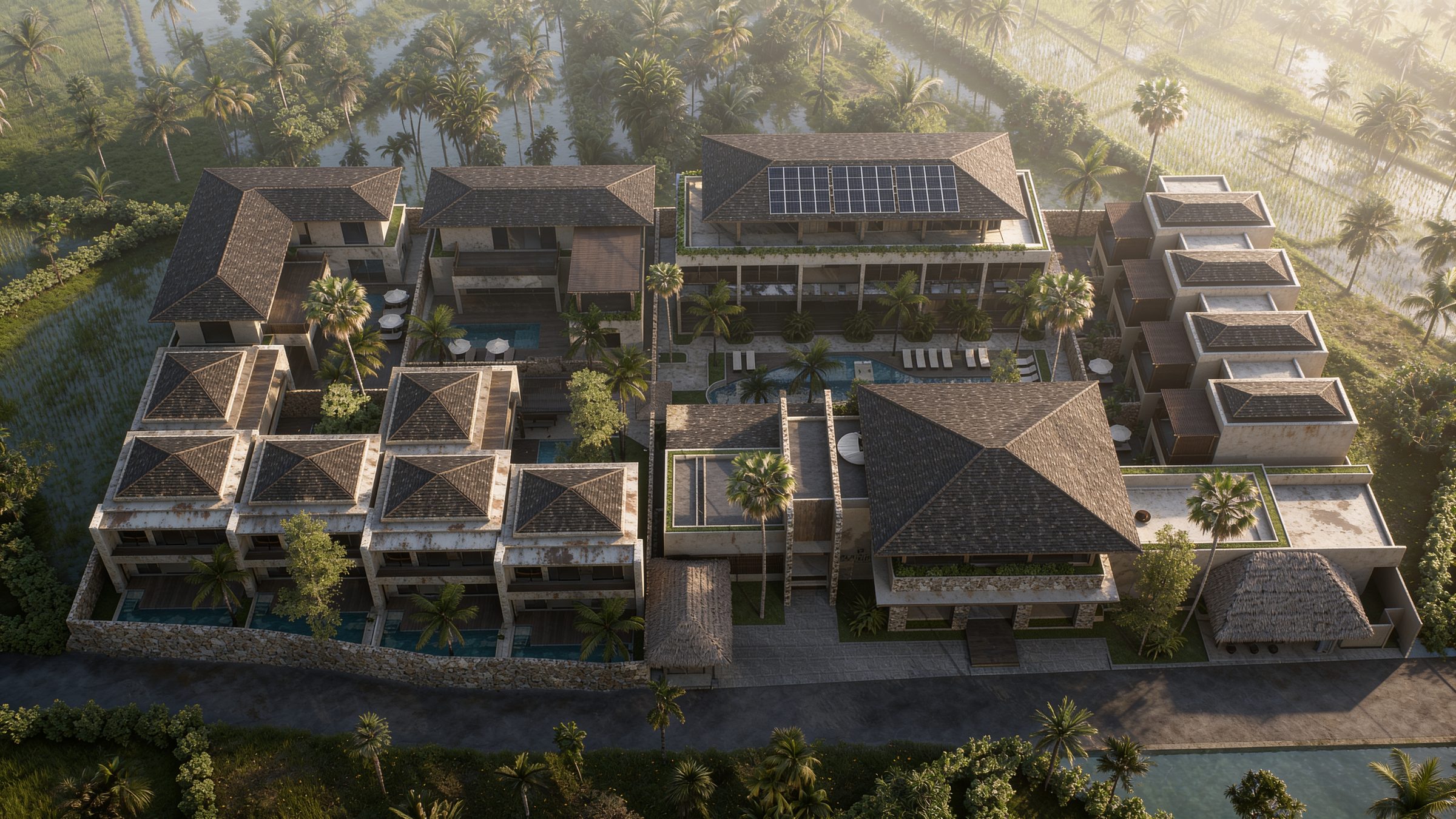

**Seedream 4.5**Hero stills Geometry held, best photo weathering, native 5K output.

**Nano Banana Pro**Precision edits Pixel-locked buildings, cleanest instruction following.

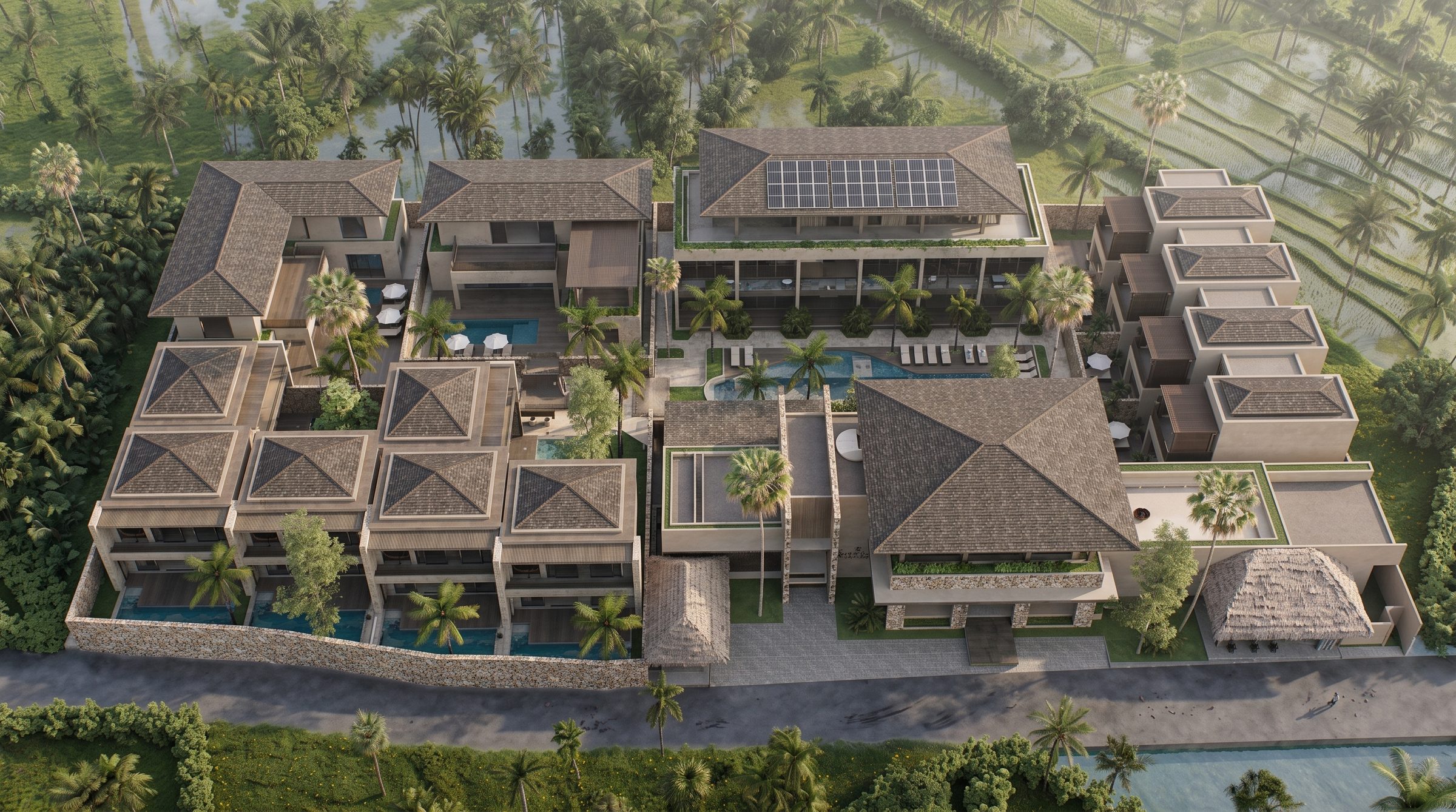

**Nano Banana 2**Close 3rd Same family, slightly softer discipline on terrain.

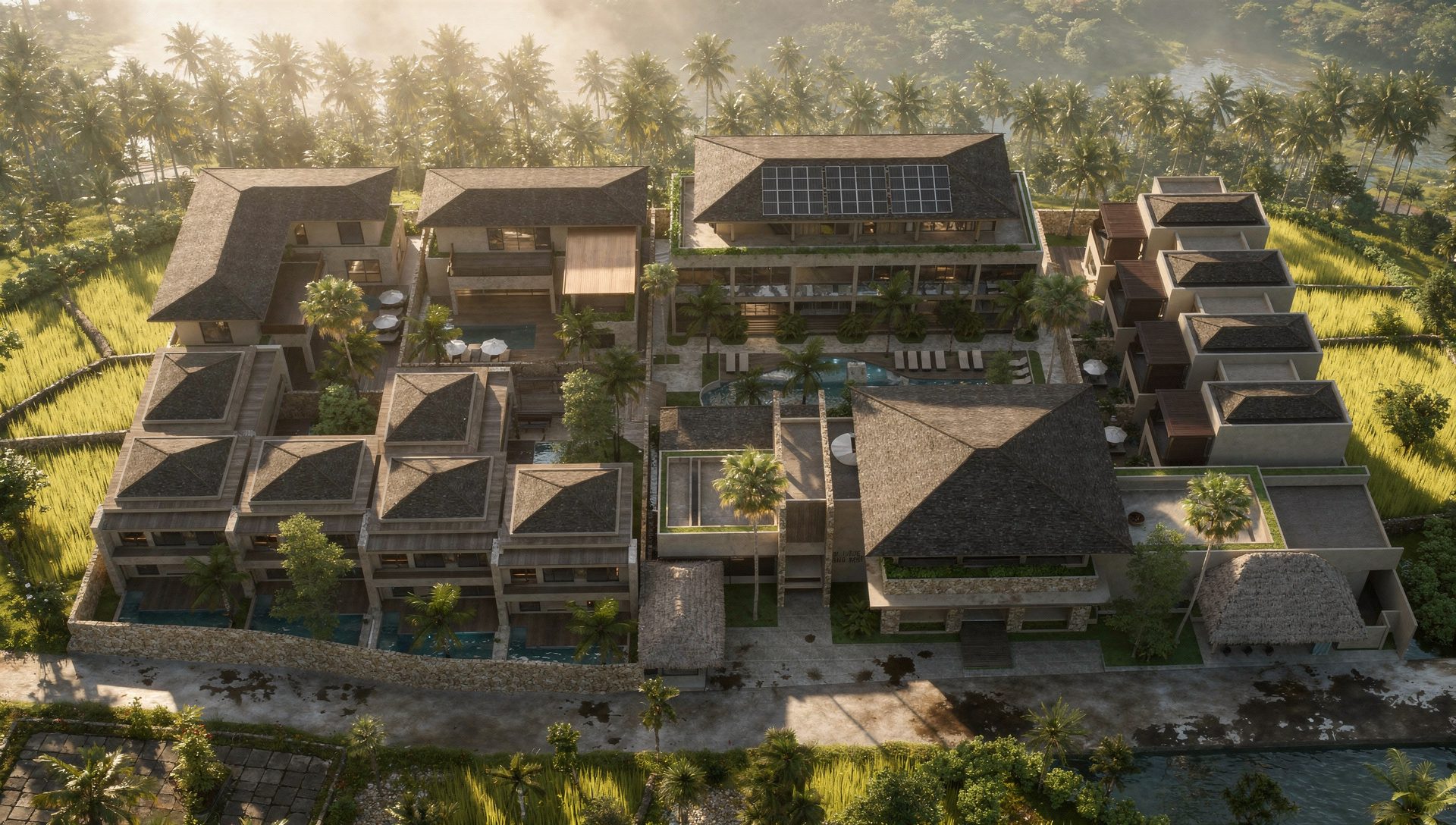

FLUX.2 max — **FLUX.2 [max]**Gritty Convincing wear and light, ground textures overdone.

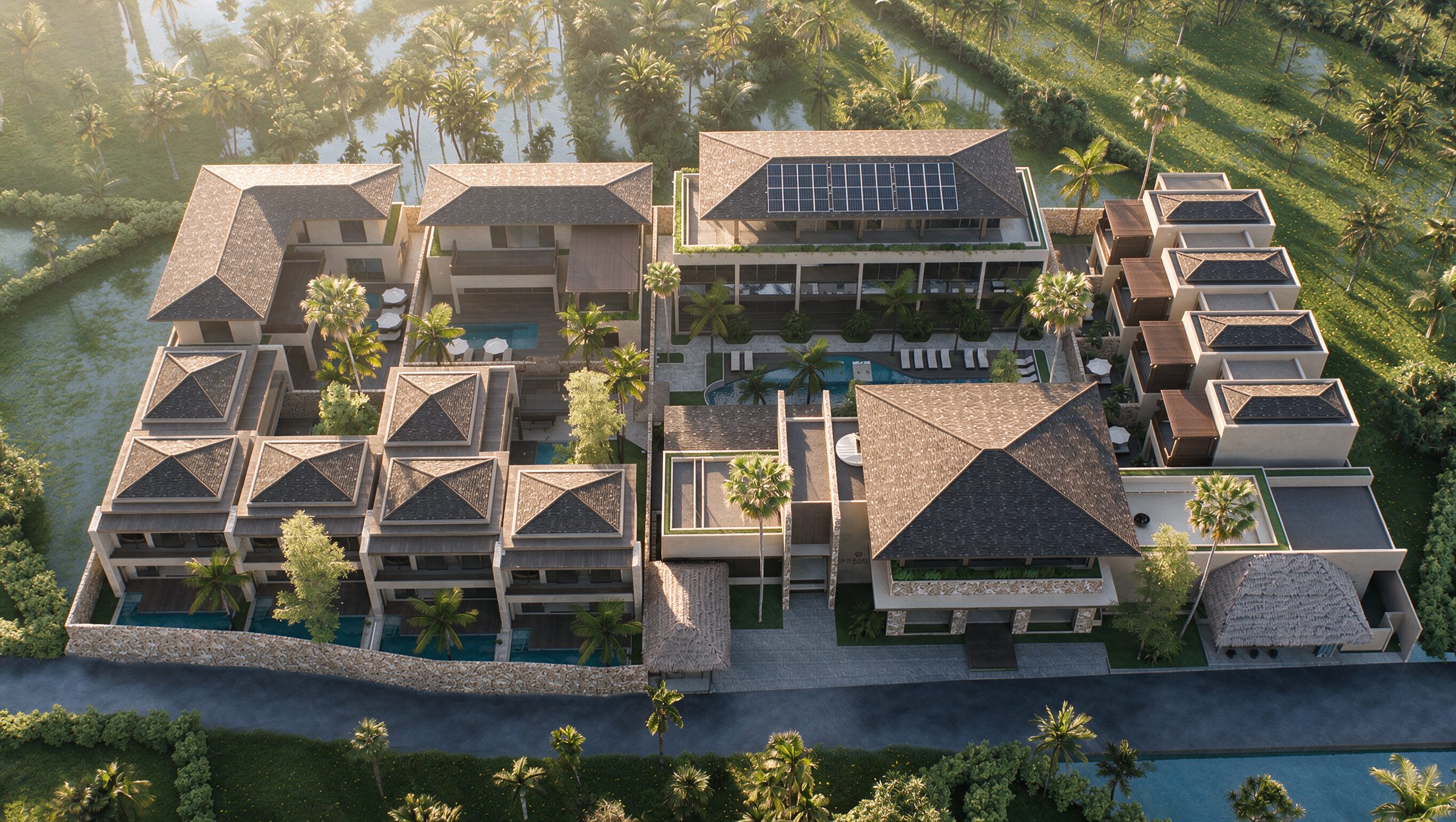

**Seedream 5.0 Pro**Clean Faithful, but stays closer to render than photo.

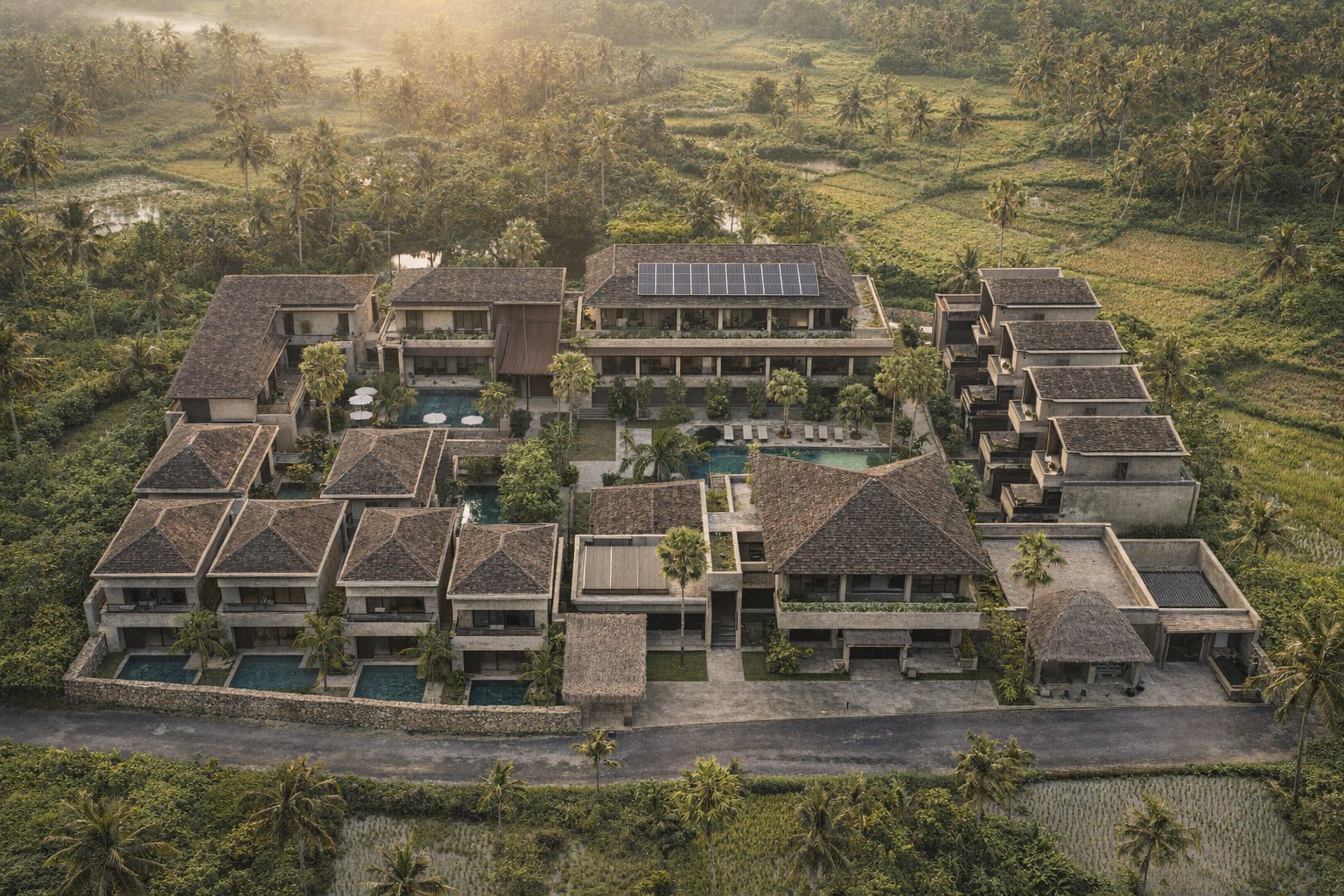

**OpenAI Hazel**Reframed Most photographic feel, weakest architecture fidelity.

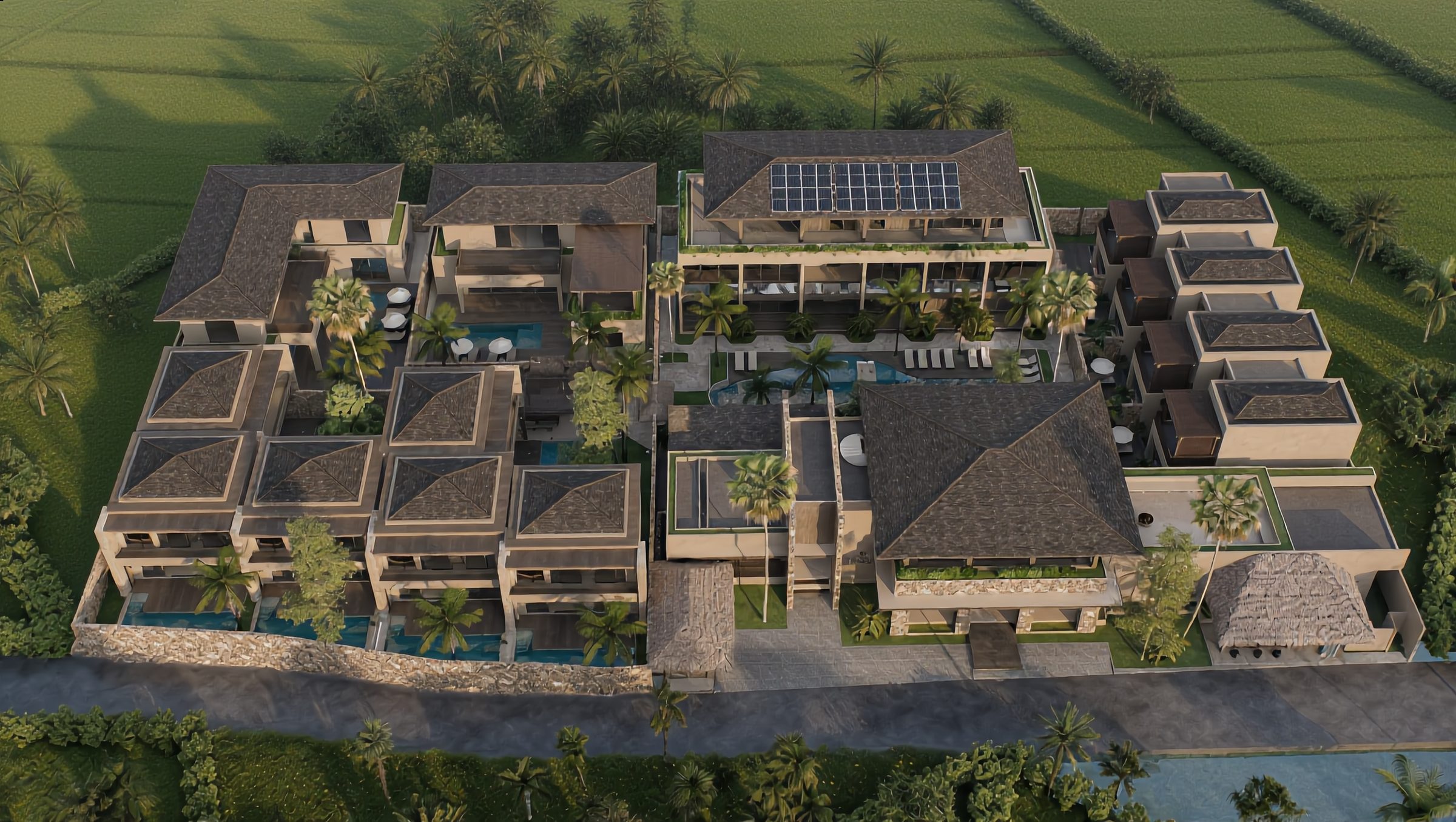

**Kling O1 Image**Still CGI Changed the least, which means it stayed a render.

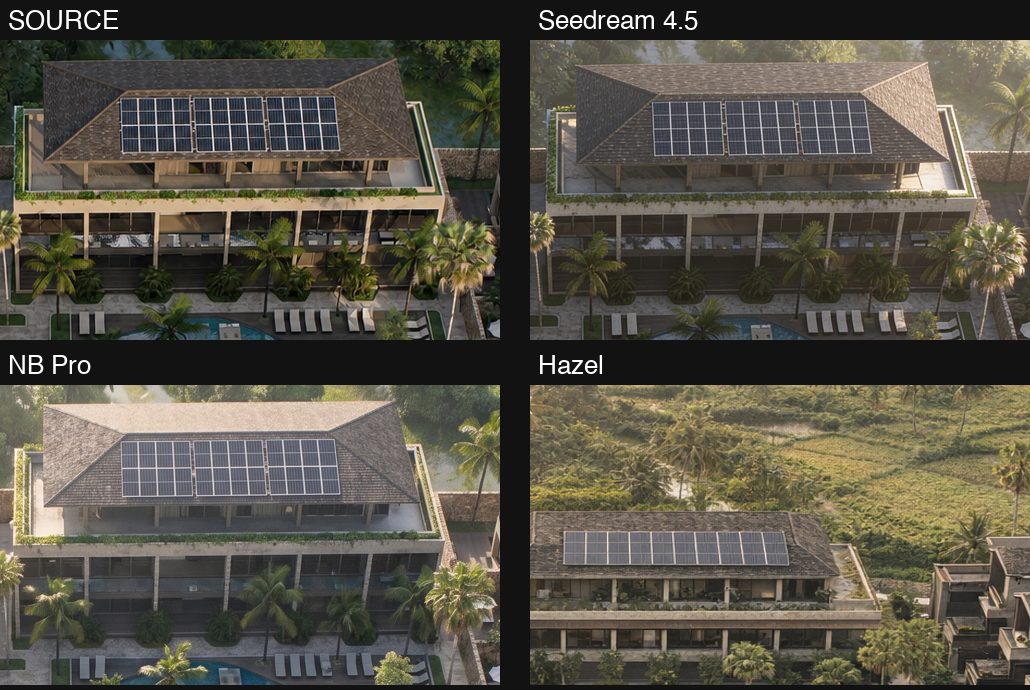

Geometry check crops — **The geometry gate.** Solar array, colonnade and pool deck crops, model vs source, before any image ships.

03The transformation

From render to photograph

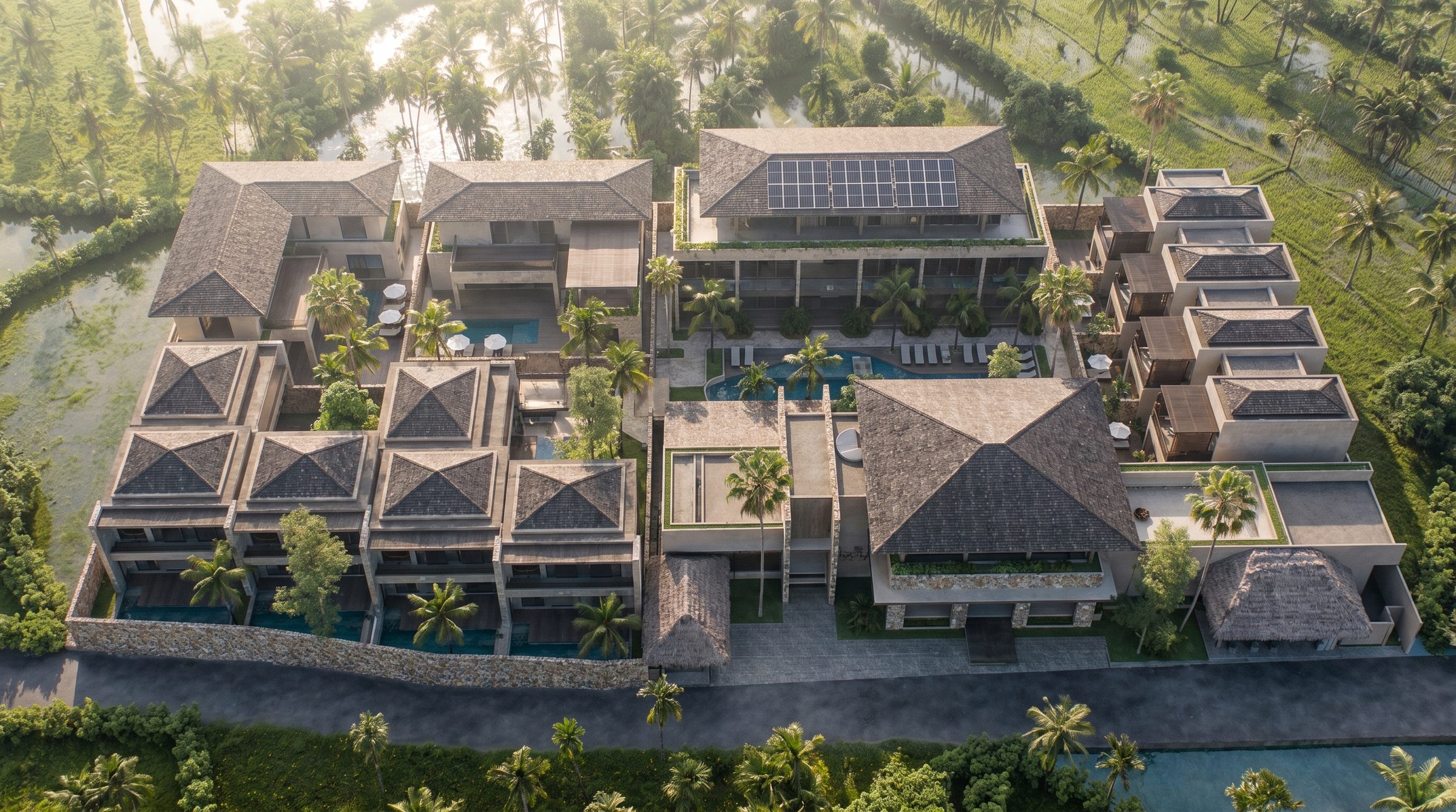

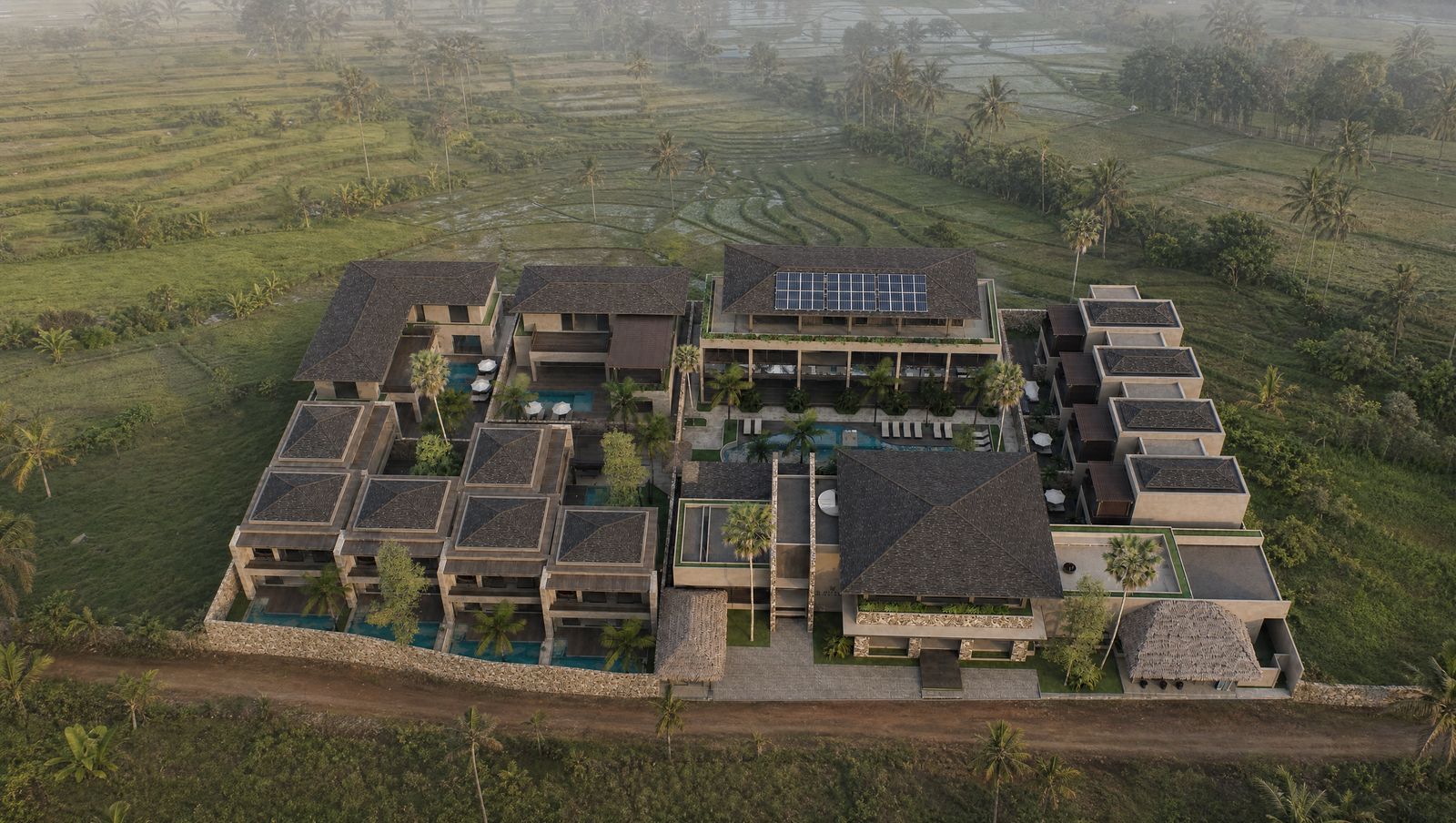

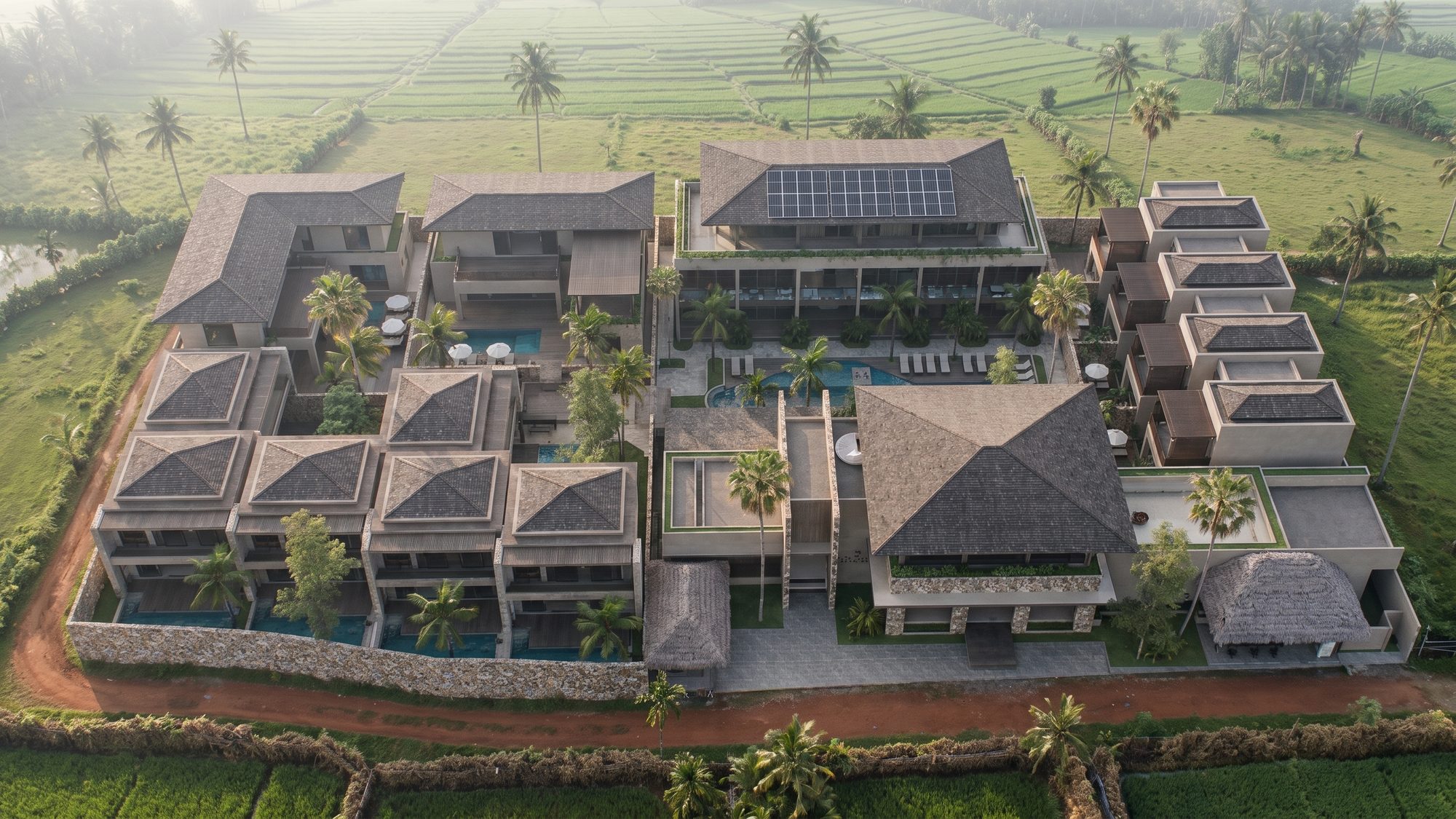

Drag the handle. Same buildings, same layout, same solar array. The plantation grid becomes organic groves and rice paddies, the light becomes morning haze, the materials pick up believable wear.

AI photographOriginal render

04New angles

Views no camera was ever placed for

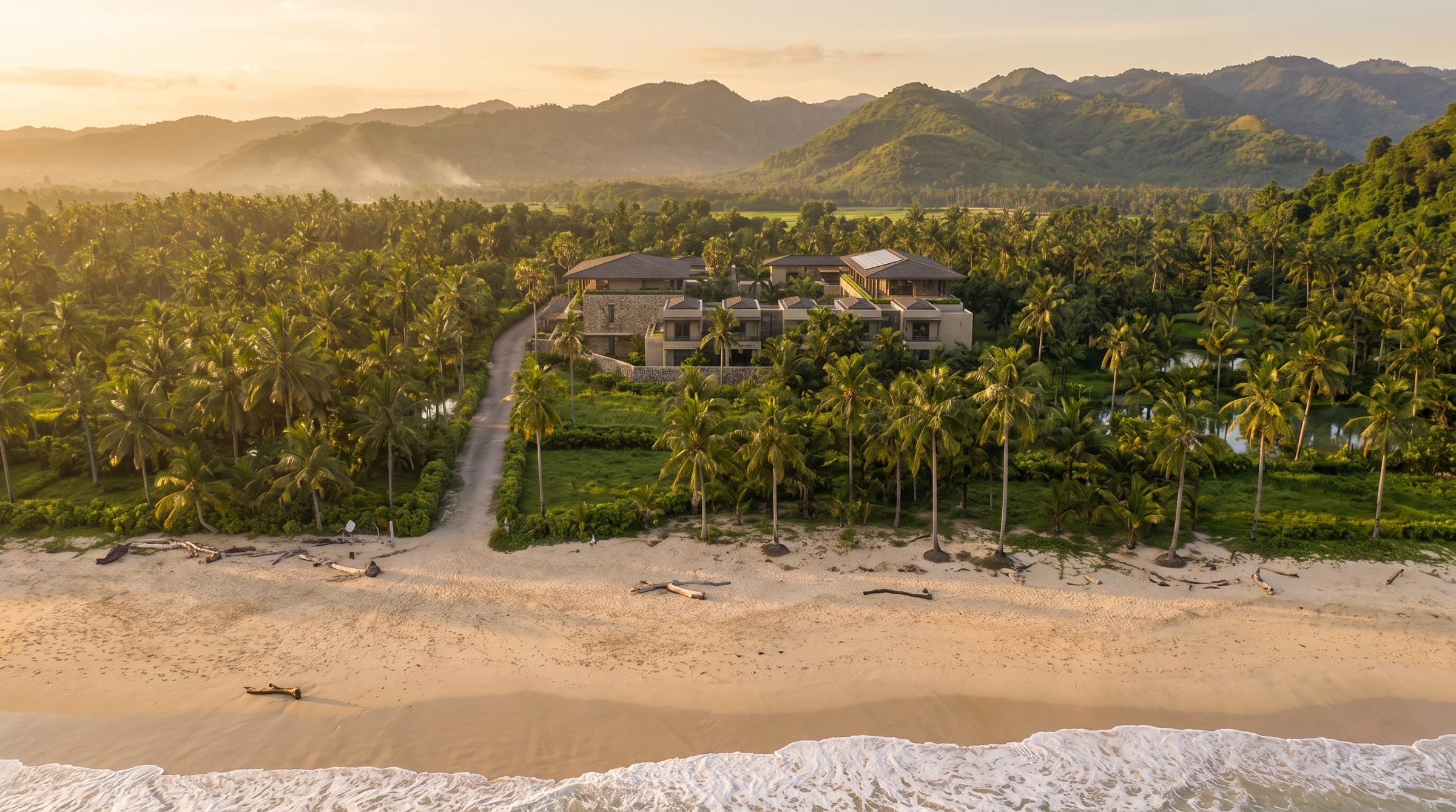

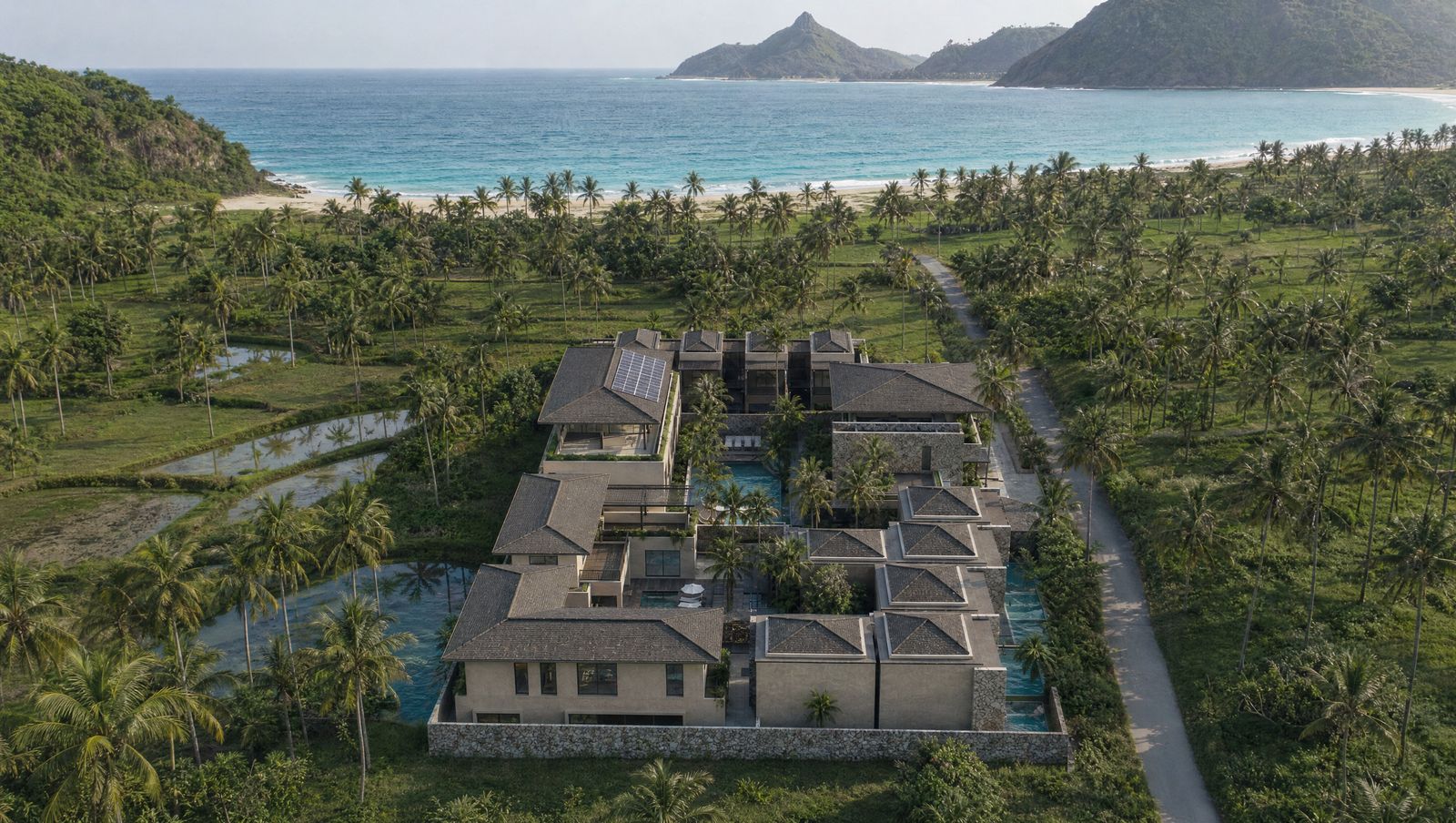

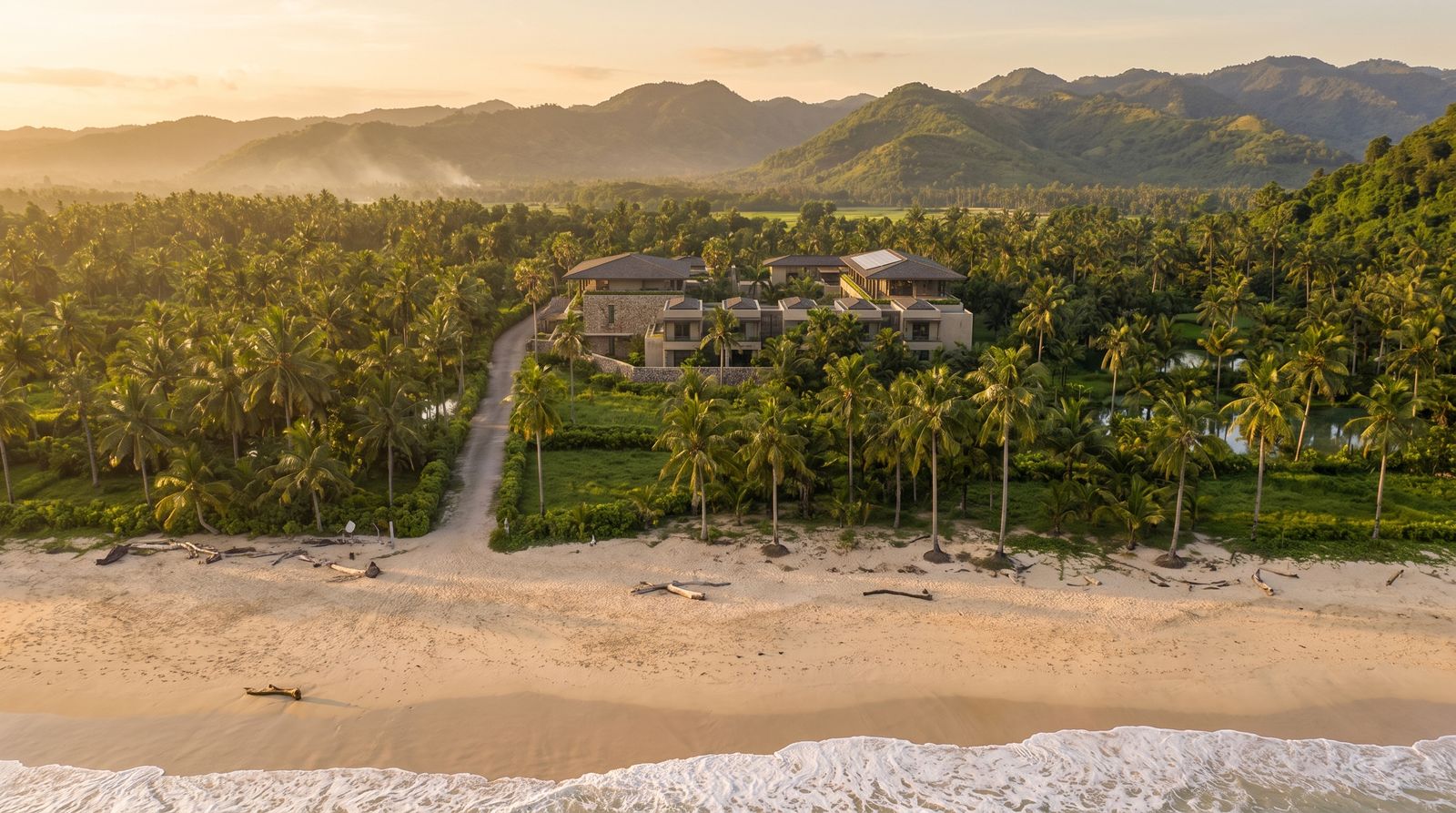

Generated from the reference set alone: the walk up from the beach, sunset behind the headland, and a rooftop flypast into the evening. Each is checked against the site plan for scale, distance and geography before it counts.

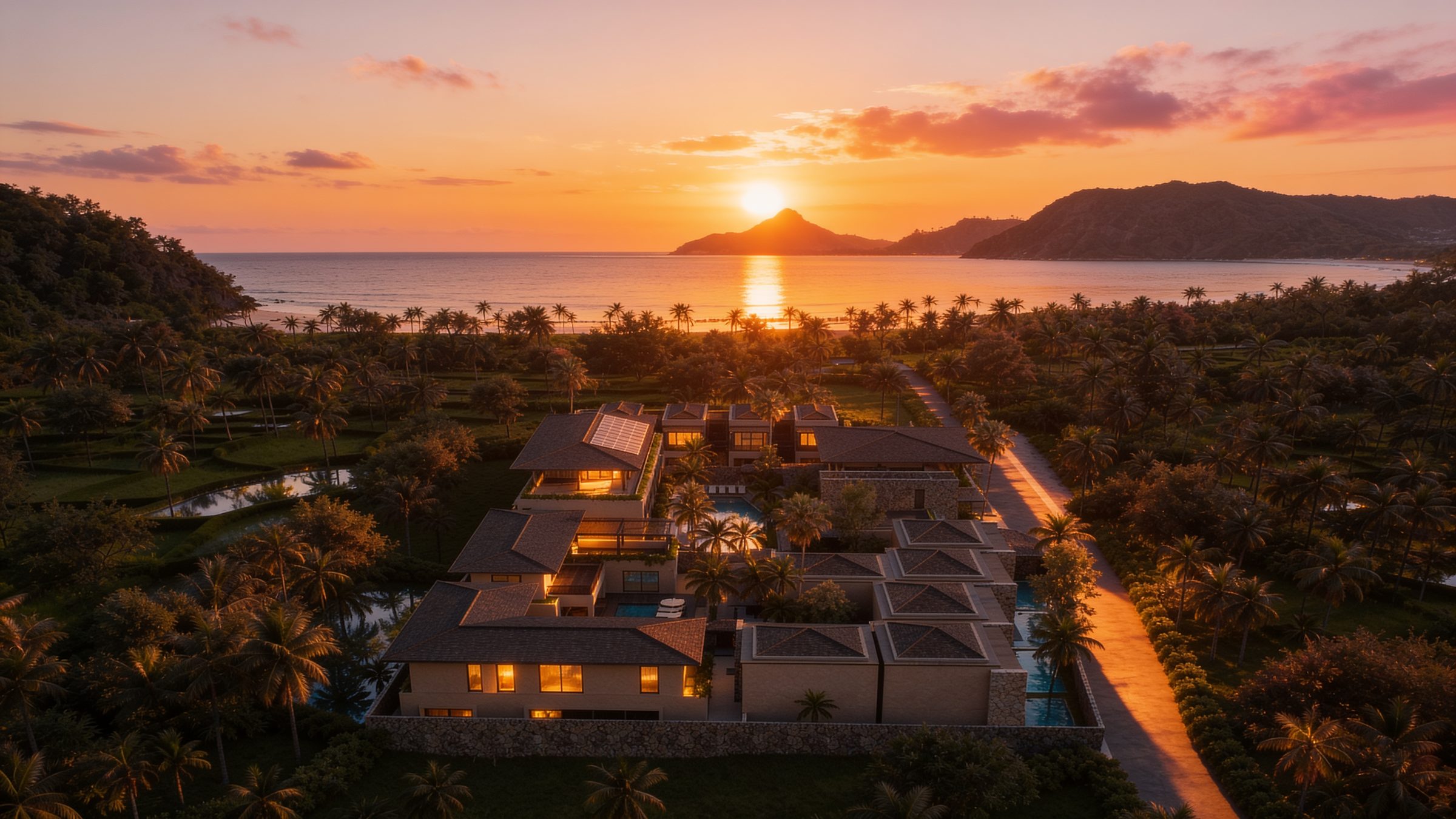

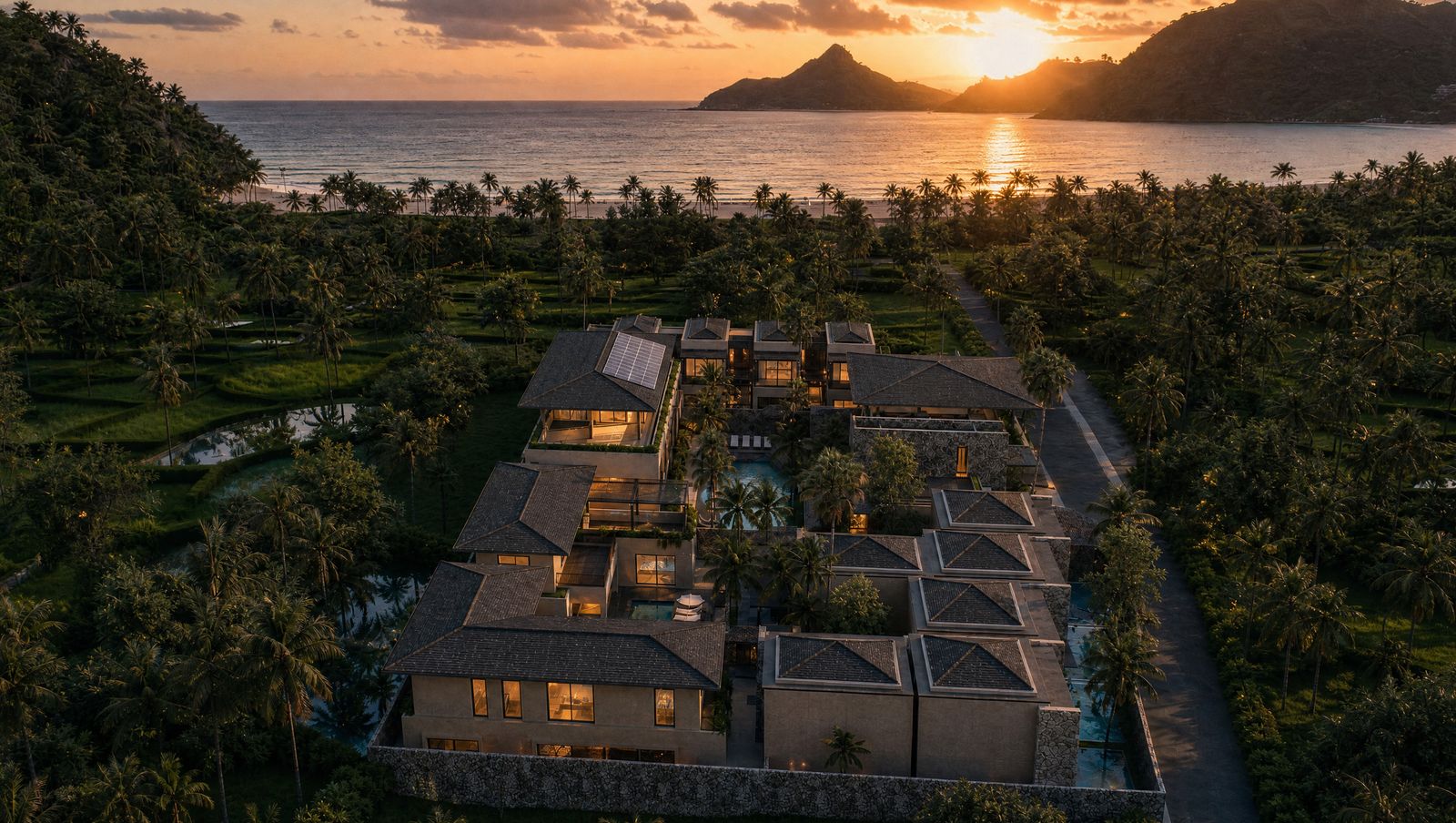

**Sunset over the bay.**Site-true The evening shot every villa brochure wants, lit windows and all.

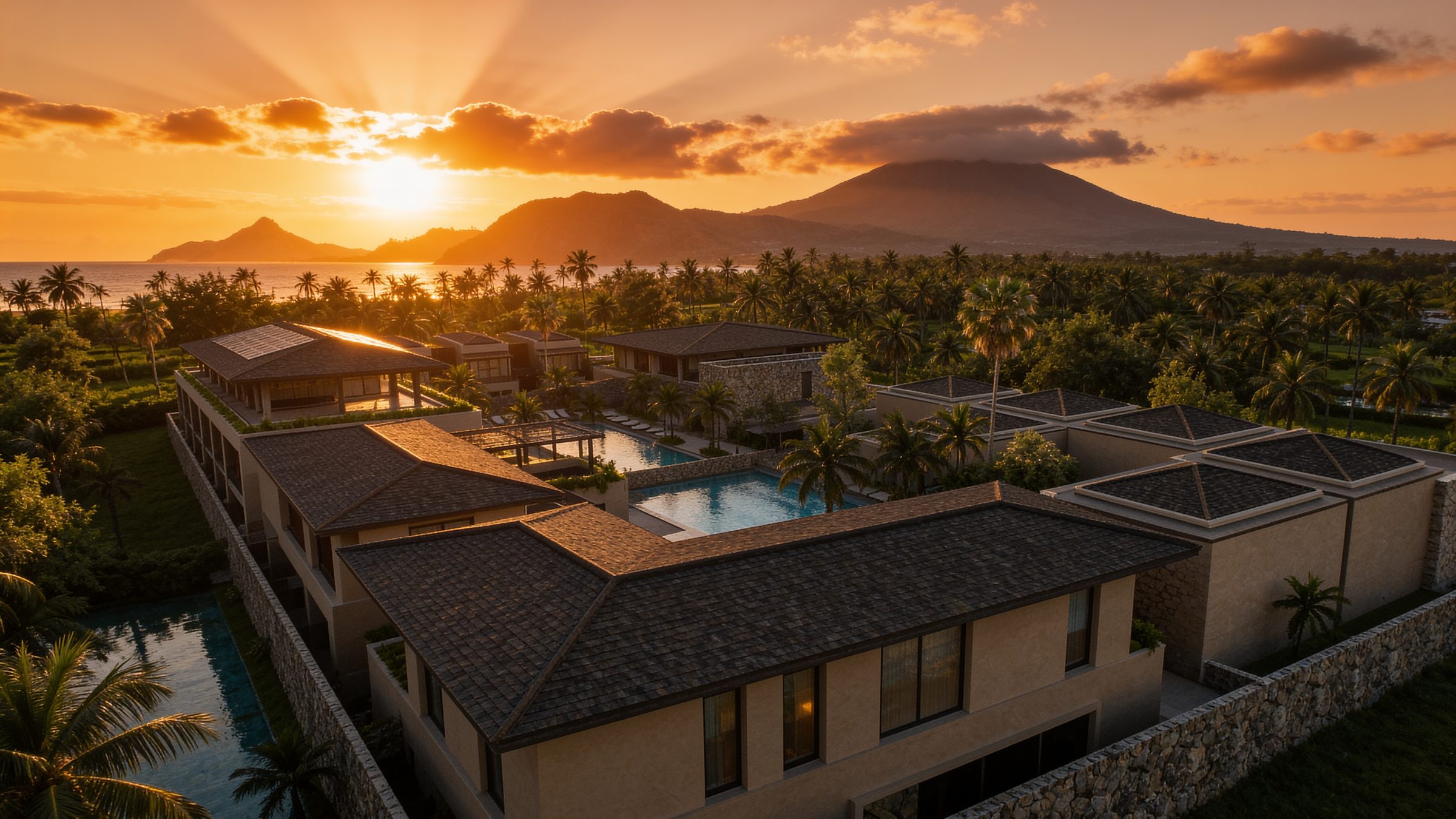

**Rooftop flypast frame.**Cinematic Minor mid-ground drift, badged for film use rather than plan checks.

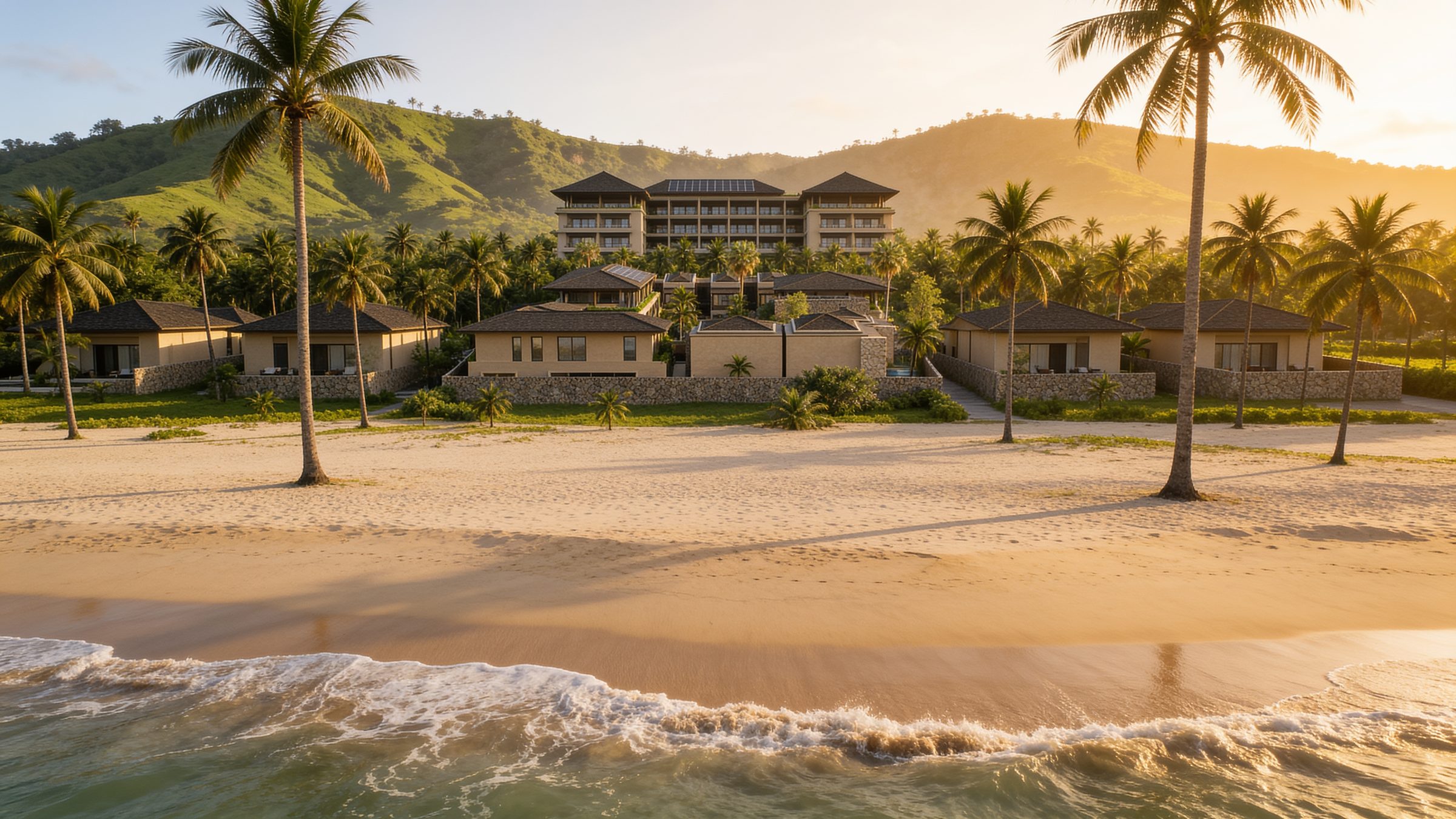

**The cautionary tale.**Rejected A beautiful lie: six storeys the project does not have, on the wrong plot. QA exists for a reason.

05Precision edits

Change one thing, keep everything else

The two operations a developer actually asks for: re-specify a material across the whole site, and remove a single unit. Both ran as one-instruction edits with the rest of the property untouched.

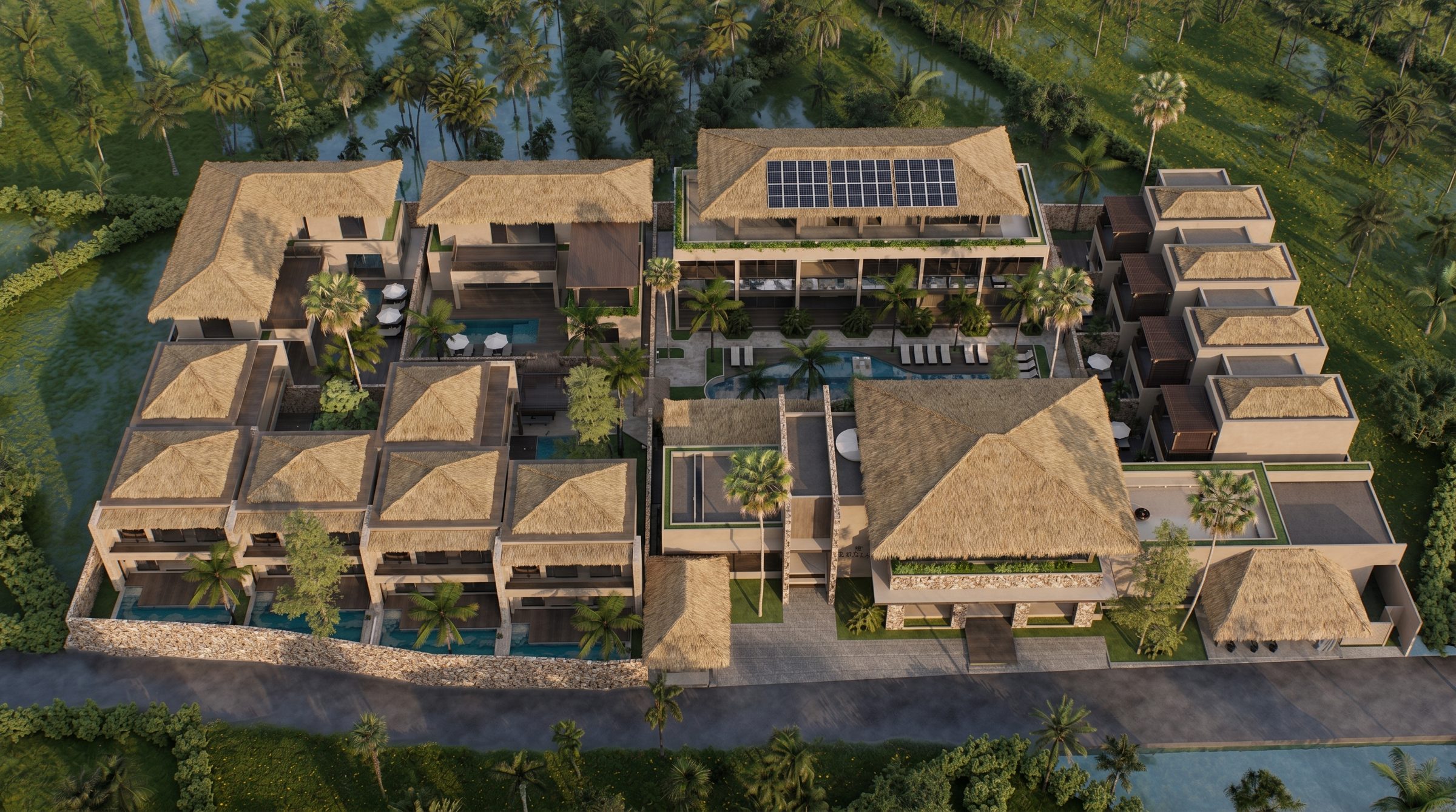

Alang-alang thatch swap — **Full roof re-spec.** Every shingle roof becomes alang-alang thatch. Identical ridges, identical footprints, solar array untouched.

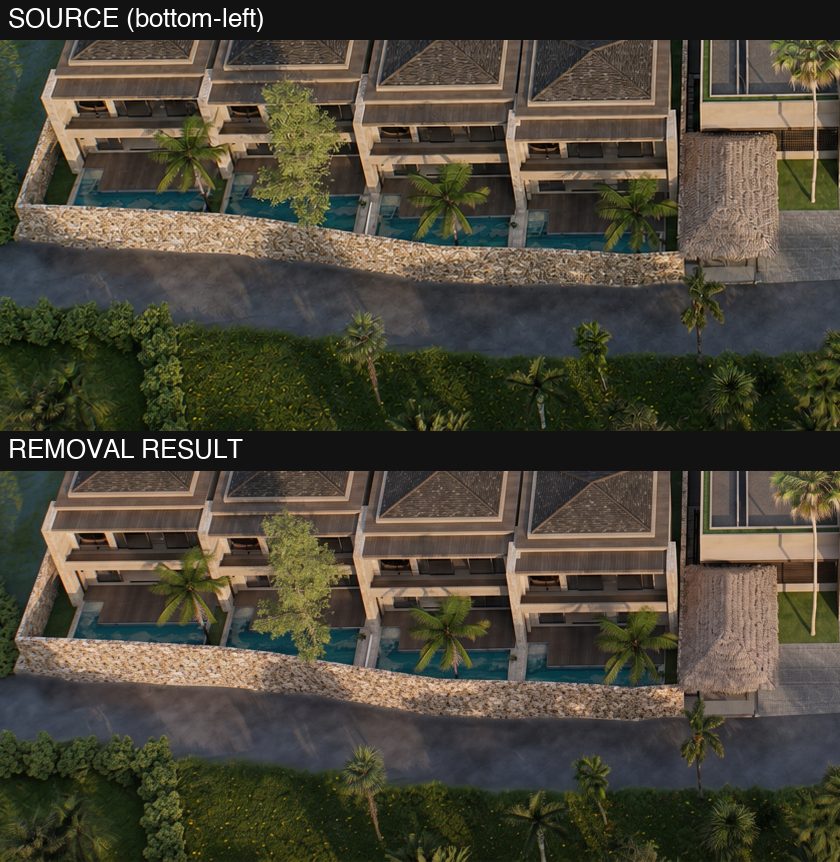

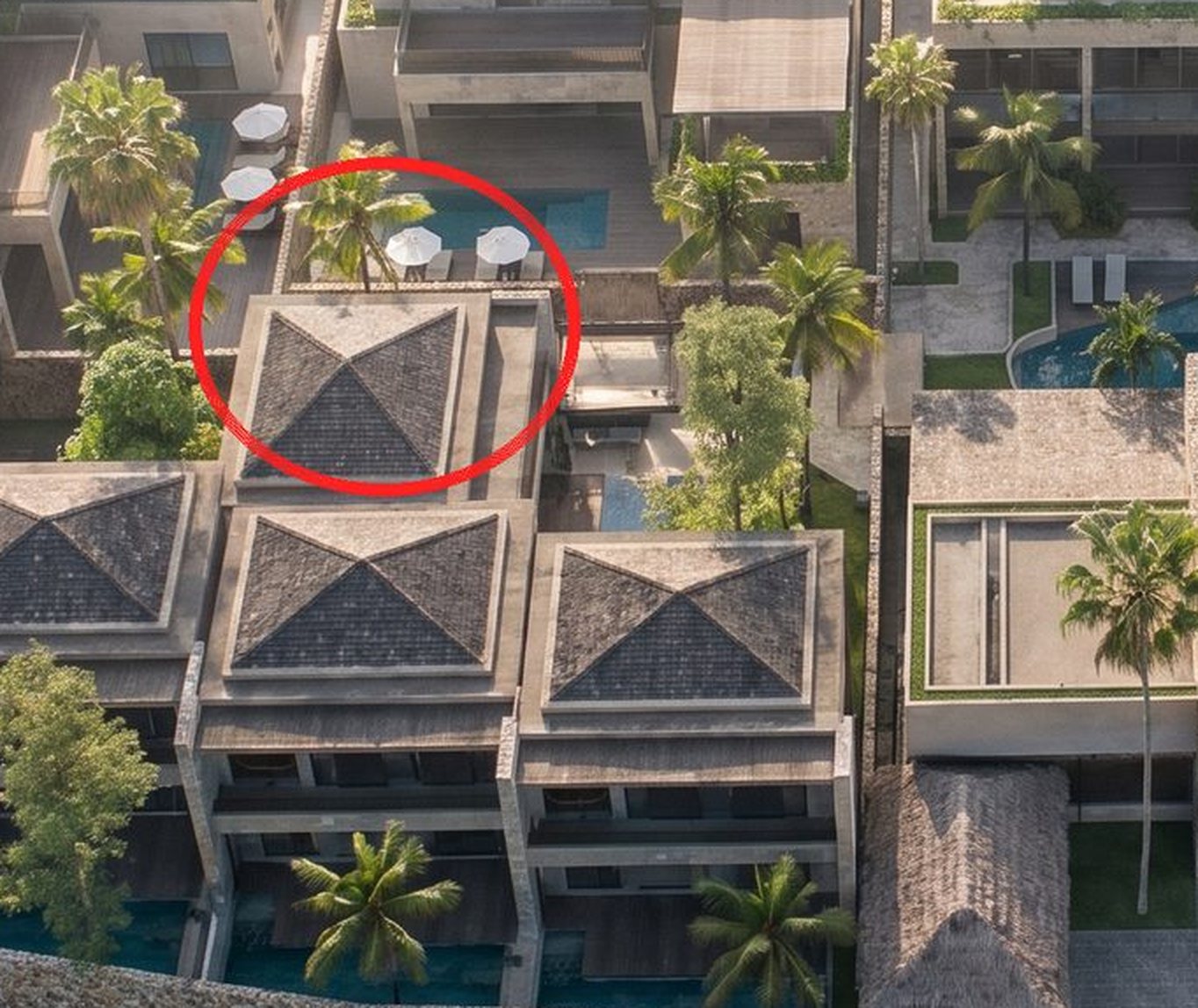

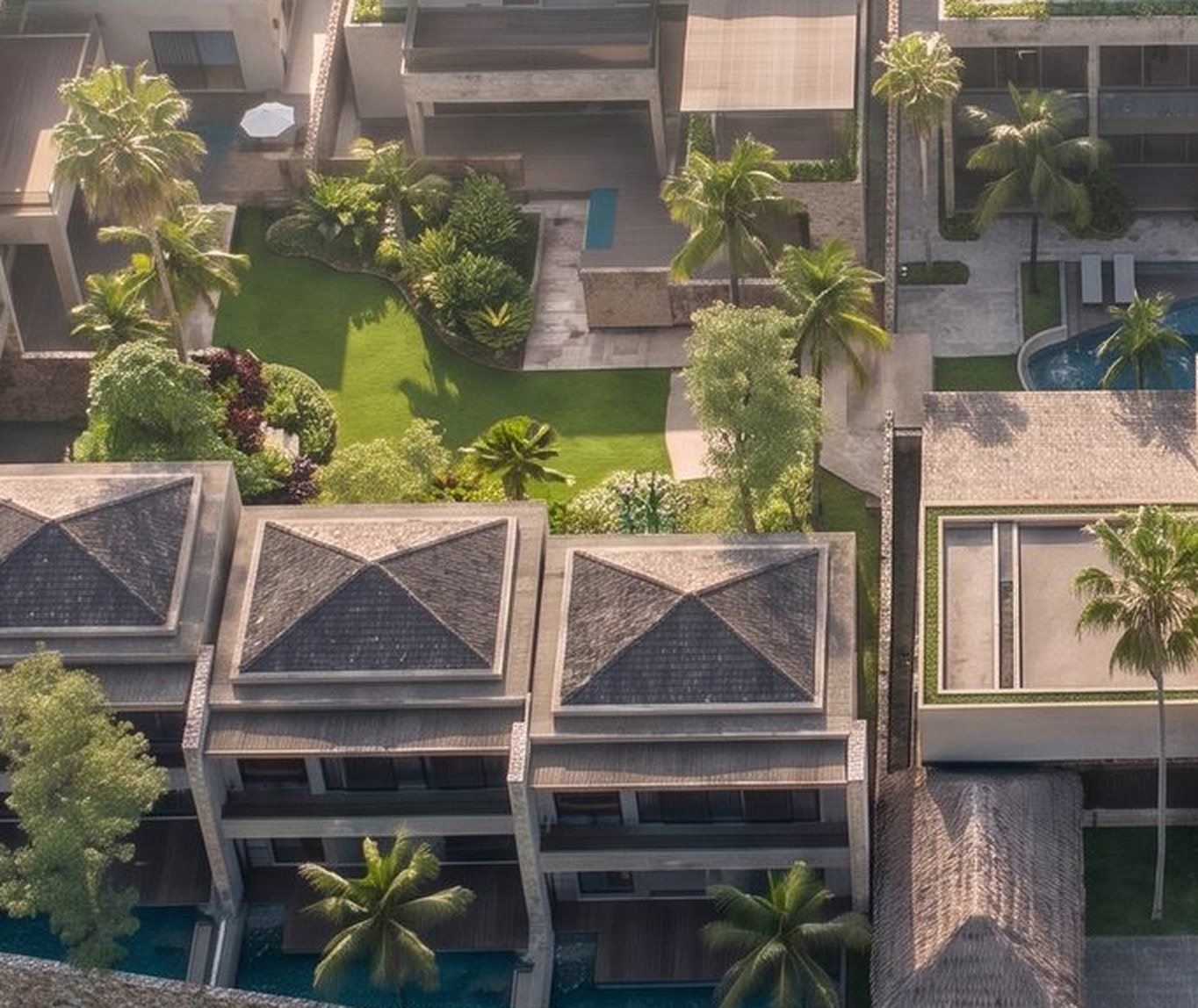

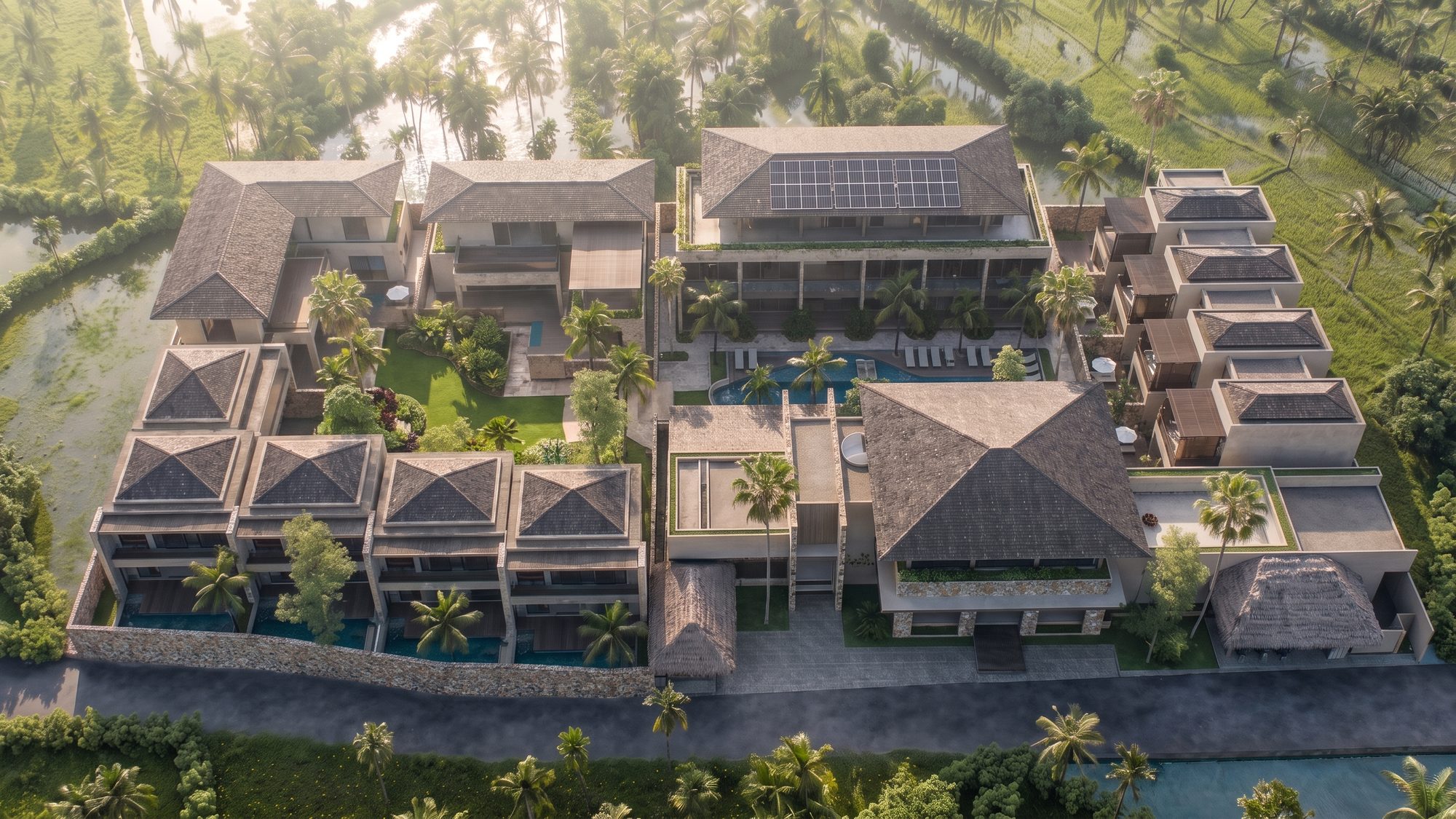

Removal before and after — **Unit removal.** The forward two-bed at bottom-left deleted, stone wall re-closed in a clean line, neighbours untouched.

06The diagram

From photo to exploded plan

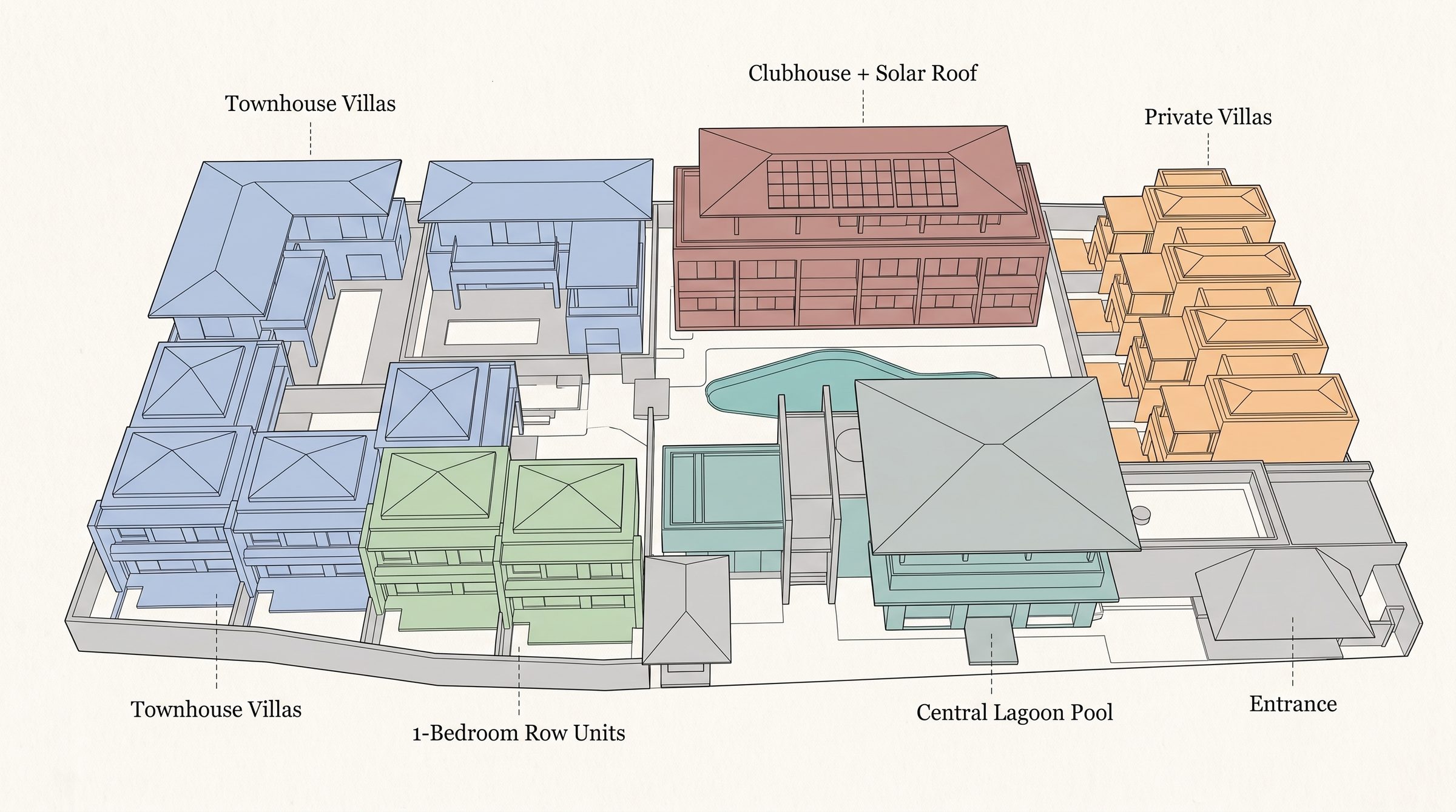

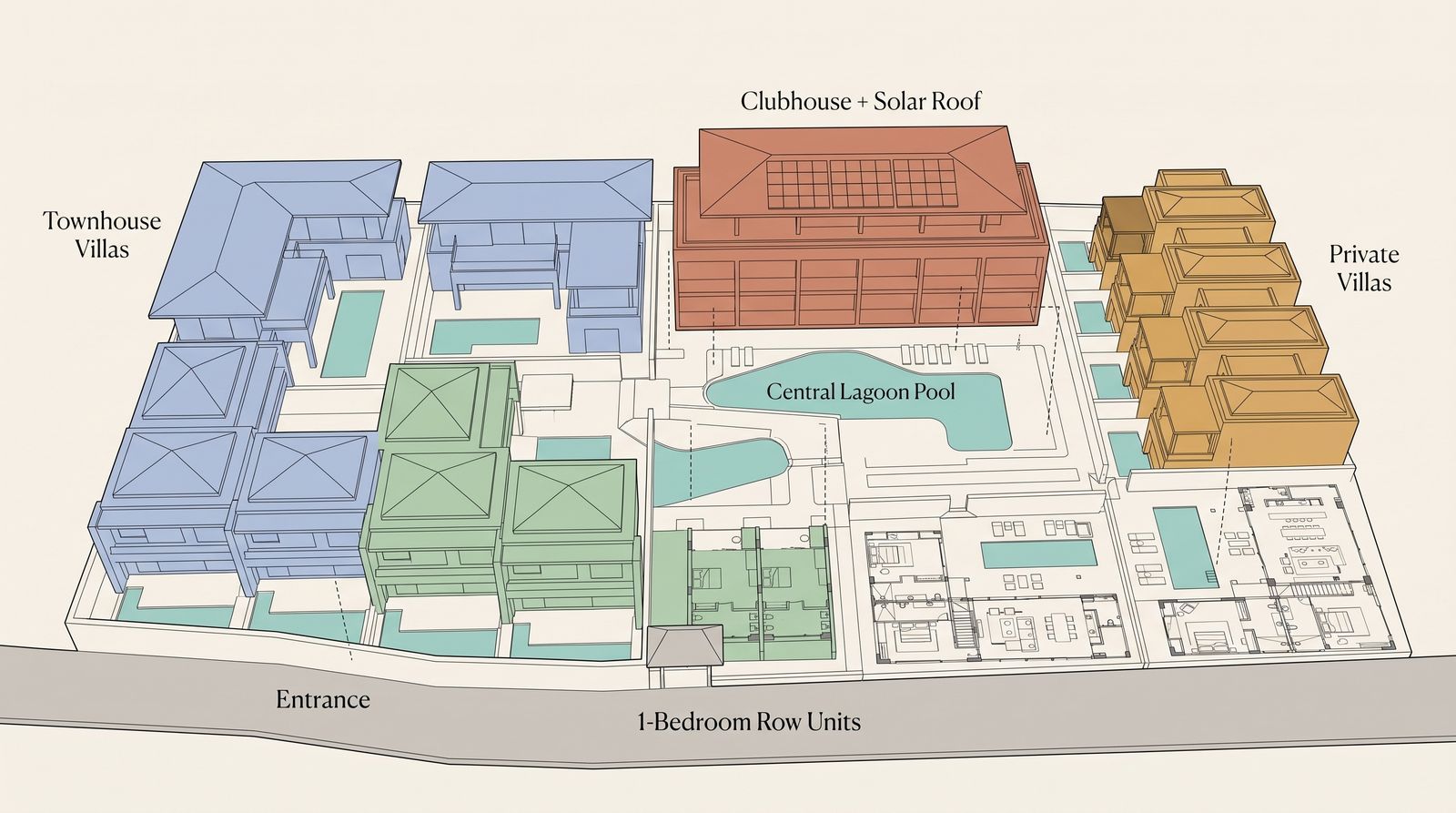

The same reference set redrawn as presentation graphics: an exploded axonometric with the buildings lifted off the master plan and colour-coded by unit type, plus a hybrid half-photo state that makes a striking section opener.

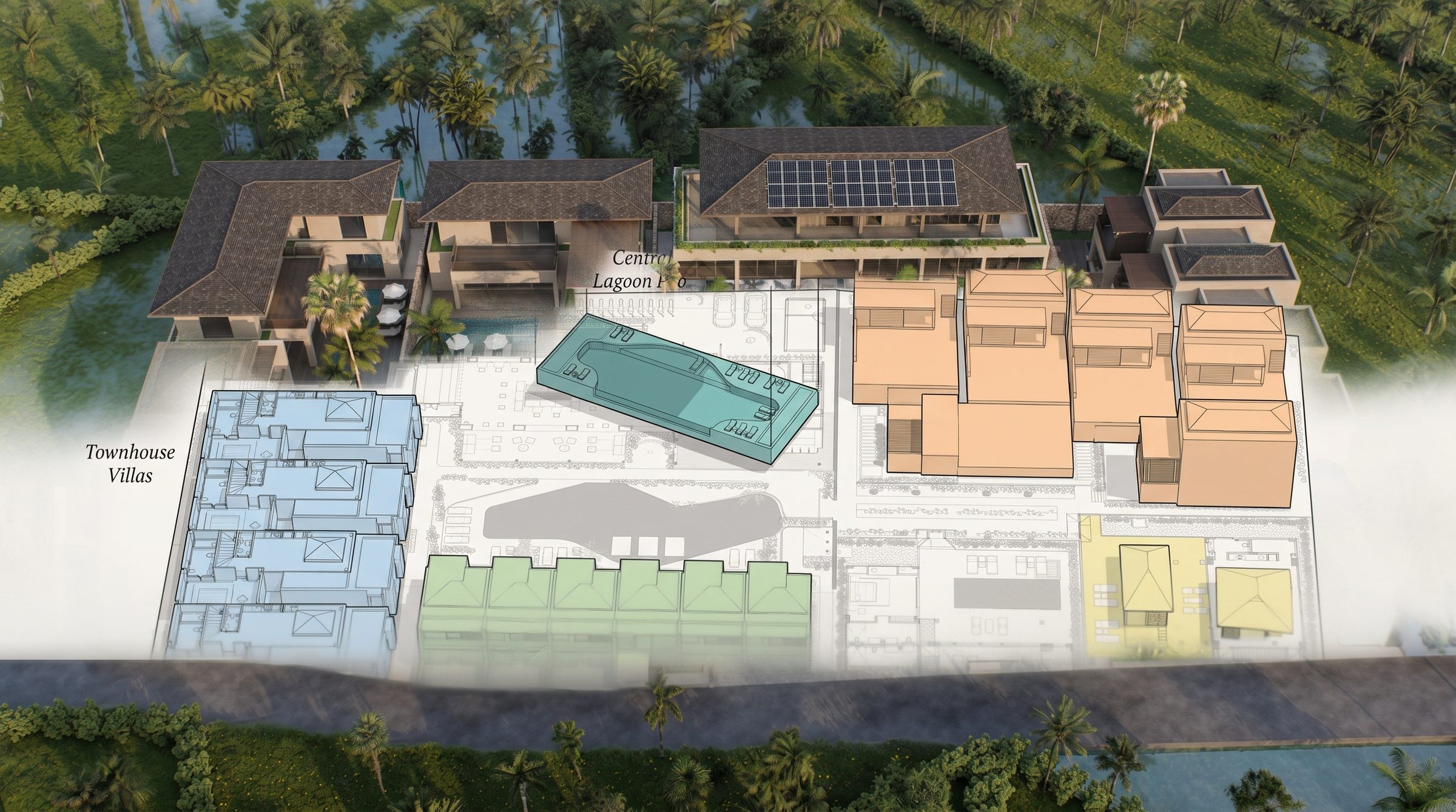

Hybrid diagram — **The hybrid state.** Photo dissolving into plan linework, an accidental keeper from iteration one.

07Motion

The drone that never flew

Video models take the approved stills as anchor frames. The orbit holds the architecture rigid through a real parallax move. This is the piece that replaces a drone day.

Orbit, Kling 3.0 pro. 10 seconds around the compound from the photoreal master frame.

Flypast to sunset, Seedance 2.0. Skims the rooftops, tilts up, ends on the bay at last light.

Beach approach, Cinema Studio 3.0. From the shoreline over the grove to the walls.

08The verdict

What to trust, what to direct, what to avoid

The pilot's operating manual in one table. The workflow that holds: edit the frame you have for exactness, generate new angles with Nano Banana Pro and QA them against the plan, reserve Seedream 4.5 for hero polish, and drive video from approved stills only.

Task	Model	Architecture	Call
Photoreal upgrade of an existing frame	Seedream 4.5 (5K) or NB Pro	Exact	Ship freely
Material swap, unit removal, landscaping	Nano Banana Pro	Exact	Ship after crop check
New angle consistent with the site	Nano Banana Pro, multi-reference	Site-true	QA against plan, then ship
Cinematic mood shots	Seedream 4.5	Drifts	Film use only, badge it
Free novel views, unconstrained	Any	Hallucinates	Never present as the plan
Orbit and flypast video	Kling 3.0 pro from approved stills	Rigid	Replaces drone b-roll

The honest line for the client: these images are marketing-accurate, not survey-accurate. Fine detail is re-synthesised even by the winners. Everything shown to a buyer traces back to a QA pass against the master plan, and nothing here is presented as construction documentation.
